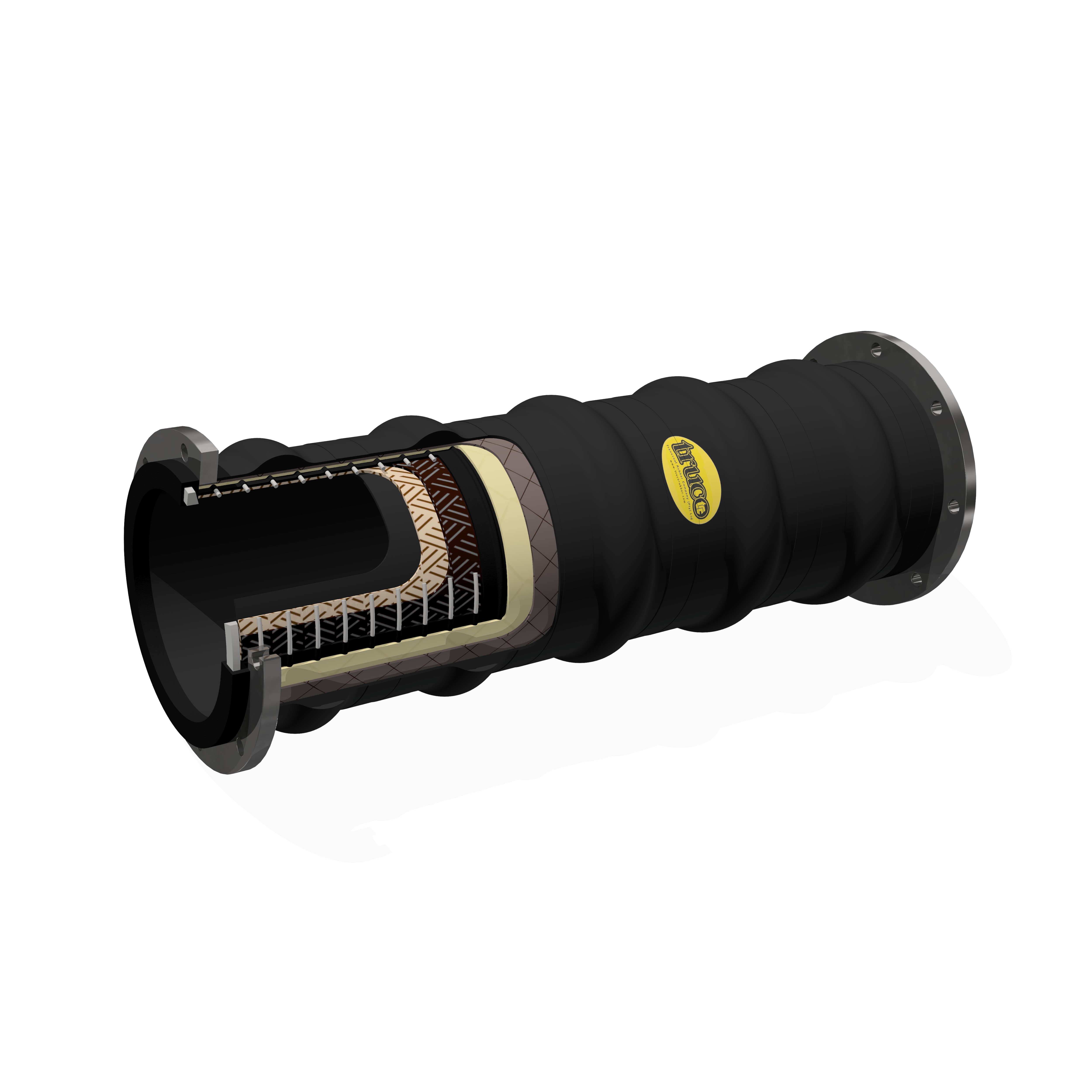

Monitor Gun Hose

Monitor gun hoses are used in a re-mining environment. Truco monitor gun hose are built to handle the high pressure and high abrasive environment of re-mining sites.

HOSE SPECIFICATION

  • HOSE CODE: FRA40.150ST

  • HOSE TITLE: 150 mm 40 bar Monitor Gun hose

  • HOSE INTERNAL DIAMETER: 152 mm

  • HOSE LENGTH: 10 meters

  • HOSE OUTER DIAMETER: 186 mm

  • END FITTINGS: TRUCO Patented Double laminated flange system

  • LINER TYPE: NR/SBR

  • LINER THICKNESS: 6 mm

  • SHORE HARDNESS (IRHD): 50 - 60

  • DESIGN OPERATING PRESSURE: 4 000 kPa

  • TEST PRESSURE: 6 000 kPa

  • BURST PRESSURE: 16 000 kPa

  • MINIMUM BEND RADIUS: 1 824 mm

  • HARDWALL / SOFTWALL: Softwall

  • COVER: UV resistant NR/SBR

  • COVER THICKNESS: 4 mm

  • EXTERNAL BUFFERS: 150 mm wide x 20 mm thick spaced every 1 meter

Call Today: +27 11 762 5291

Understand how Truco classifies and distinguishes its range of industrial hoses. Ensure efficient ordering with this guide. Click here.

Recommended storage guide

Get the ideal monitor gun hose for your application requirements from Truco!

S Size: The length and inside diameter?

T Temperature: Temperature of the medium transported?

A Application: What is the purpose of the hose?

M Material: What product will be conveyed through the hose?

P Pressure: The working pressure and the required safety margin?

E Ends: Are couplings required, and if so a detailed specification?

D Delivery: When is it needed?

*
*
*
*
*
