Rubber Sheeting

Truco is one of the largest distributors of industrial rubber sheeting in Africa. Our comprehensive range includes insertion rubber, abrasion resistant Trucotex®, neoprene, nitrile, butyl, silicon, hypalon and Viton.

Rubber sheeting and lining material is available in

  • Standard widths of up 1 800 mm
  • Non-standard widths available on request

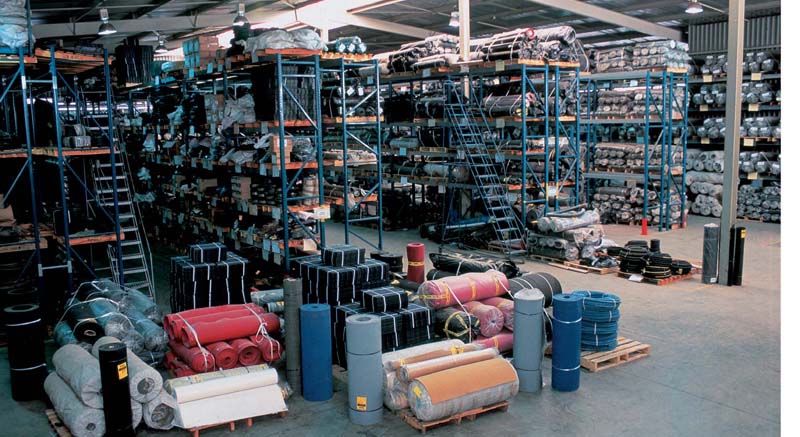

Truco has an extensive stock holding and has branches in Johannesburg, Cape Town and Durban. This guarantees immediate stock availability on all rubber sheeting and linings.

  • General purpose and insertion rubber from: R 130 per running metre
  • Rubber flooring from: R 240 per running metre

Download our rubber sheeting brochure here.

Truco offers full technical support on the complete range of rubber sheeting and lining material, including rubberised flooring. Contact one of our Sales Staff on +27 11 839 2370 for more information.

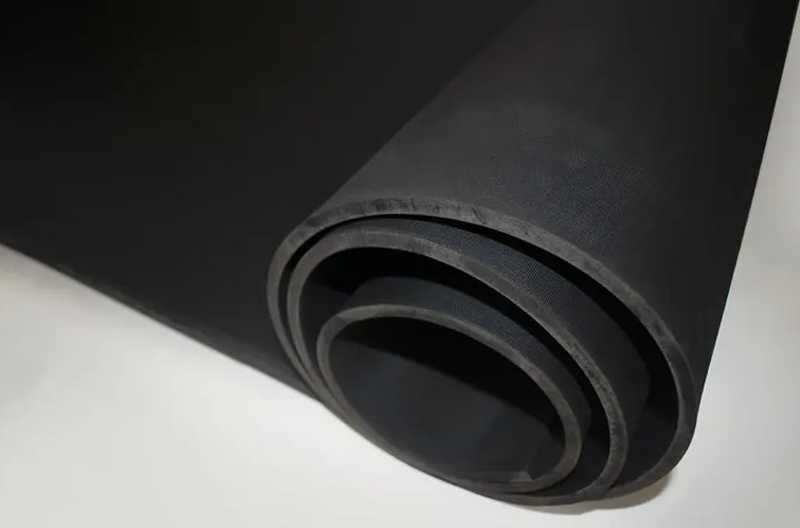

General Purpose Rubber Sheeting

  • Range of Medium Grade NR & SBR sheeting
  • Ideal for buffers, scrapers, gaskets and squeegees
  • Abrasion & acid resistant
  • Fabric finish
  • Hardness IRHD: 45 – 65

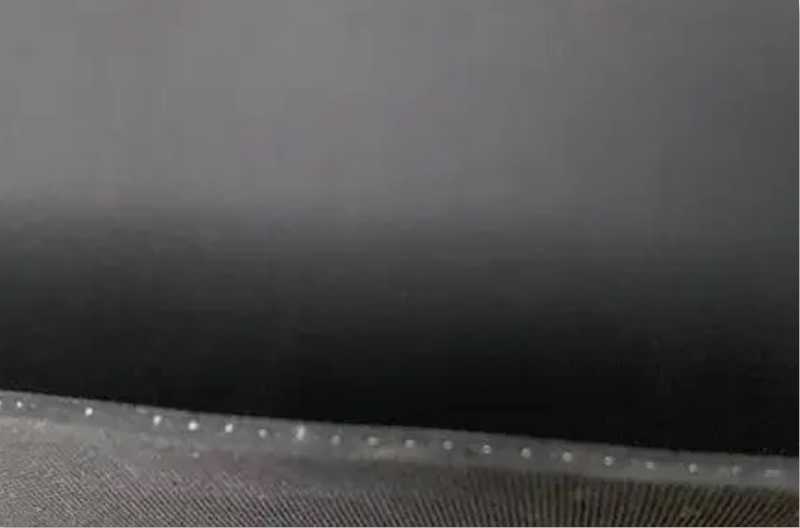

Insertion Rubber Sheeting

  • Low Grade NR/SBR with fabric crenet
  • Ideal for gaskets, spacers & buffers
  • Fabric finish
  • Tensile strength: 2.5 MPA

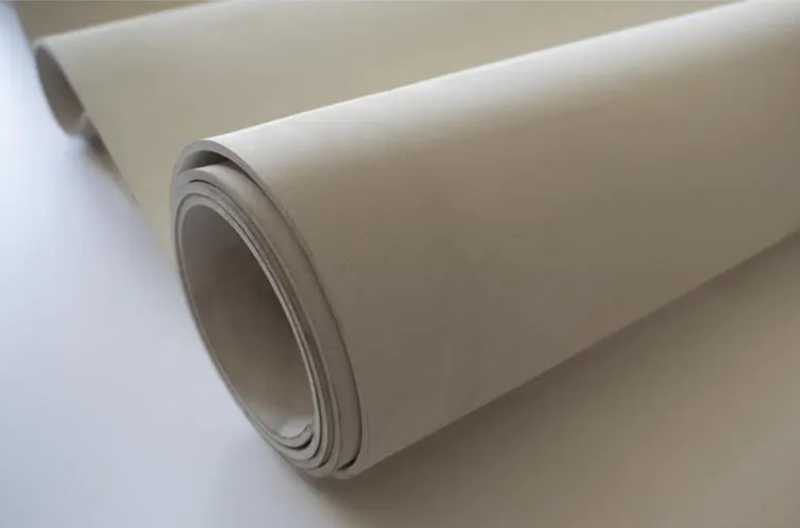

Food Grade Rubber Sheeting

  • FDA-approved
  • Non-swelling & non-toxic
  • For food gaskets, buffers & liners
  • Good abrasion resistance
  • Fabric finish
  • Hardness IRHD: 65

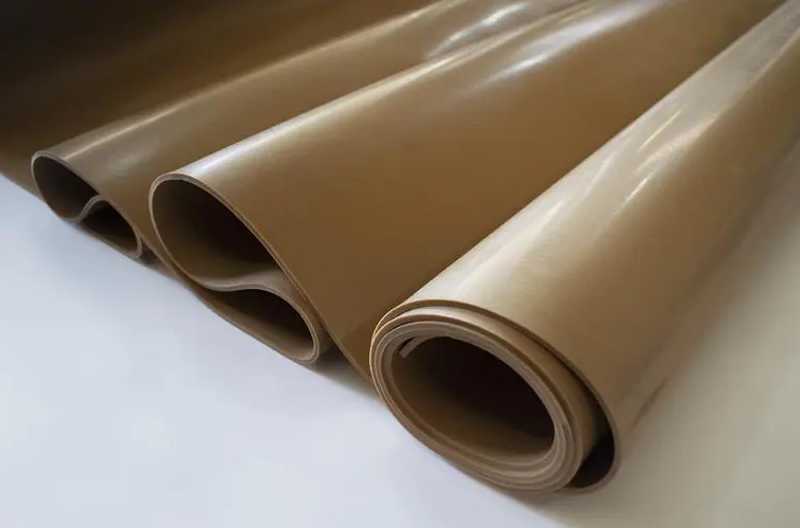

Gum Rubber Sheeting

  • High-quality NR
  • Excellent physical properties
  • Good memory, abrasion resistance
  • For abrasion, lining, chutes & buffers
  • Fabric finish
  • Hardness IRHD: 40

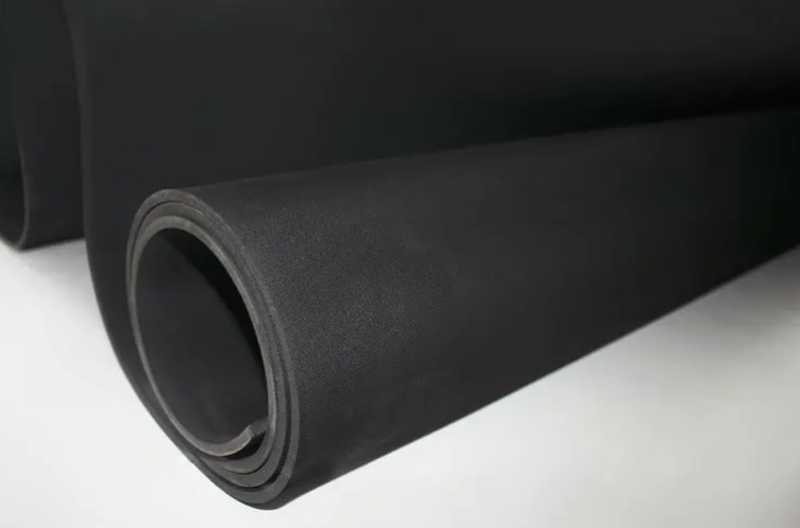

Neoprene Rubber Sheeting

  • High-grade CR for oil/fuel applications.
  • Good weathering properties.
  • Used for Oil / fuel gaskets / external weathering applications

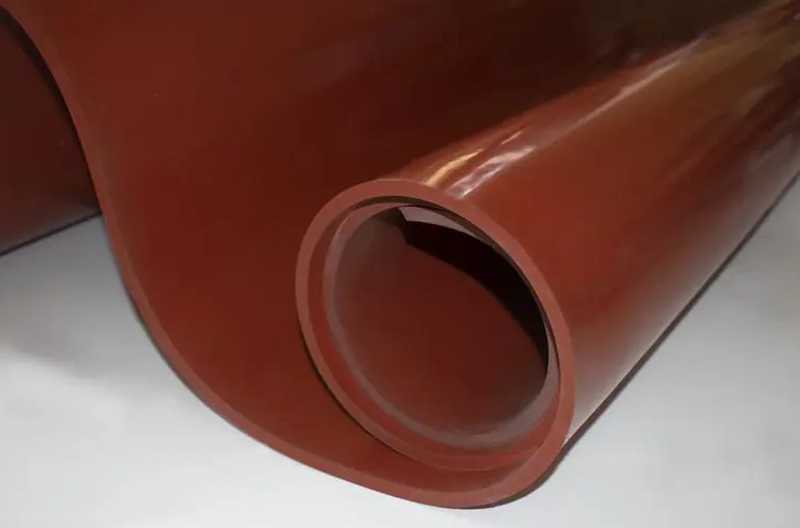

Silicone Rubber Sheeting

  • Excellent temperature resistance
  • For extreme temperature applications
  • Smooth finish
  • Hardness IRHD: 60

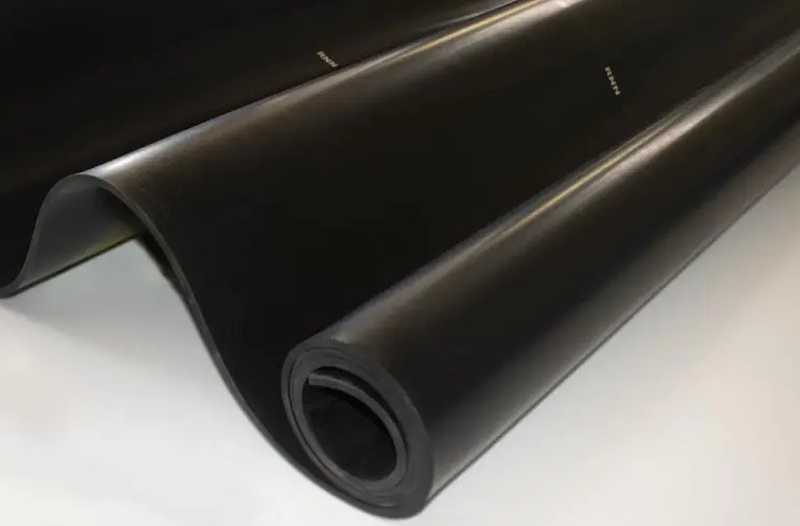

Nitrile Rubber Sheeting

  • Good resistance to petrochemical
  • Oil resistance is excellent
  • Poor UV and ozone resistance
  • Between 25% and 60% Absorption
  • Commercial and High Grade options
  • Internal use for fuel / oil, heat applications

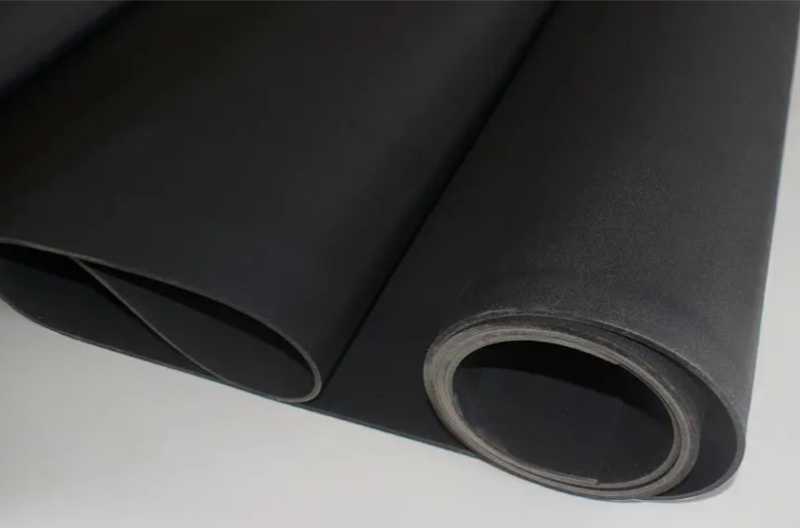

Butyl Rubber Sheeting

  • Resistant to weathering, heat, chemicals & acids
  • Low water permeability
  • Fabric finish
  • Hardness IRHD: 60
  • Temp: -20° to 130° C

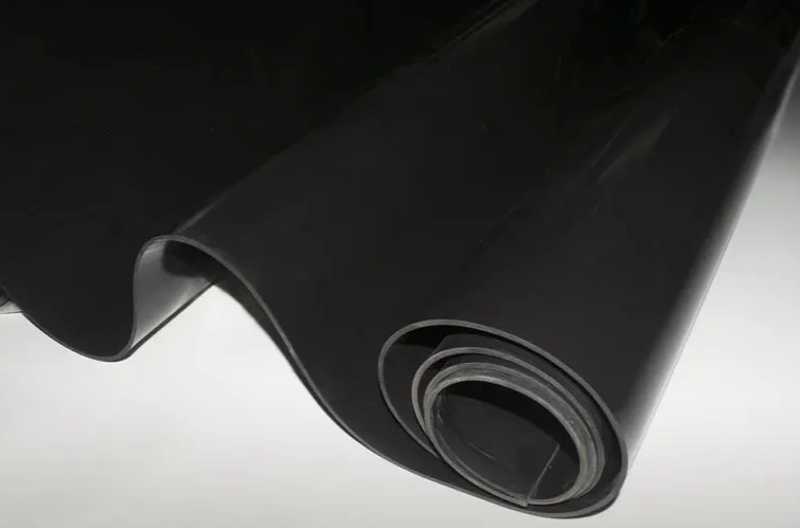

Viton Rubber Sheeting

  • Good ozone, weathering & heat resistance
  • Excellent acid resistance
  • Ideal for applications with heat, ozone, acids, oils and fats
  • Fabric finish
  • Hardness IRHD: 70

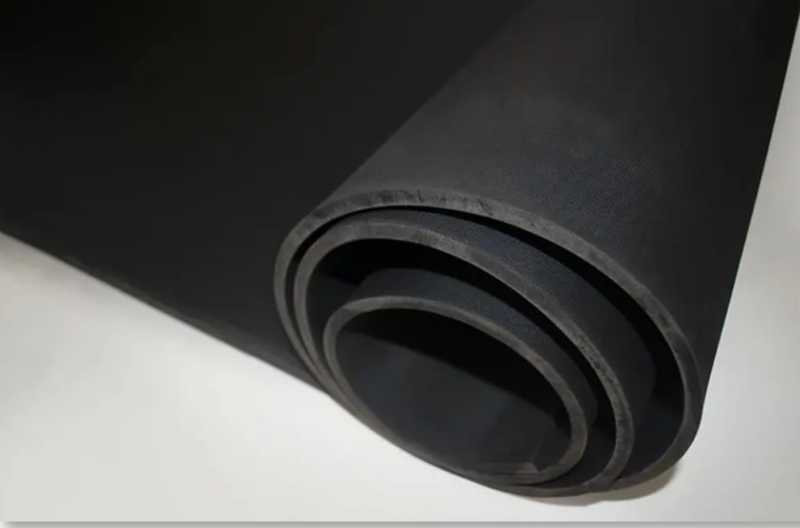

EPDM Rubber Sheeting

  • Good heat & weathering resistance
  • Low water permeability
  • For heat, weathering & gasket applications
  • Fabric finish
  • Hardness IRHD: 70

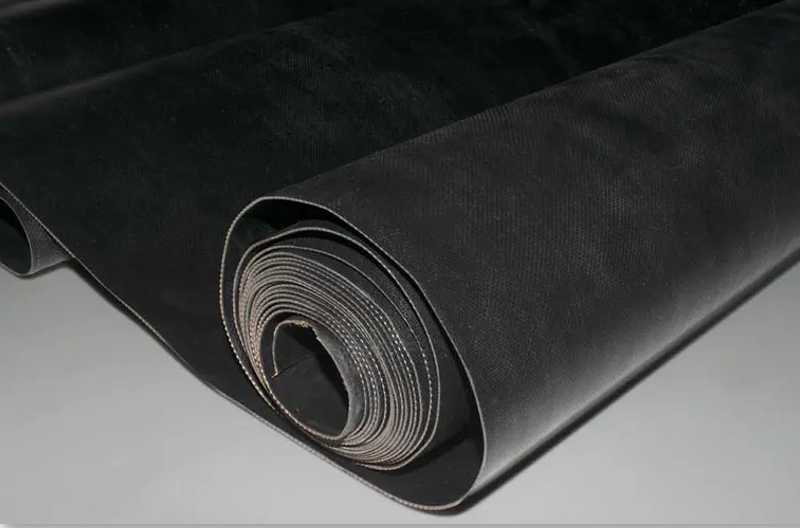

Hypalon Rubber Sheeting

  • Good resistance to ozone, acids, bases and hydrocarbon
  • Excellent heat resistance
  • For gaskets, high temp., acids & bases
  • Fabric finish
  • Hardness IRHD: 50

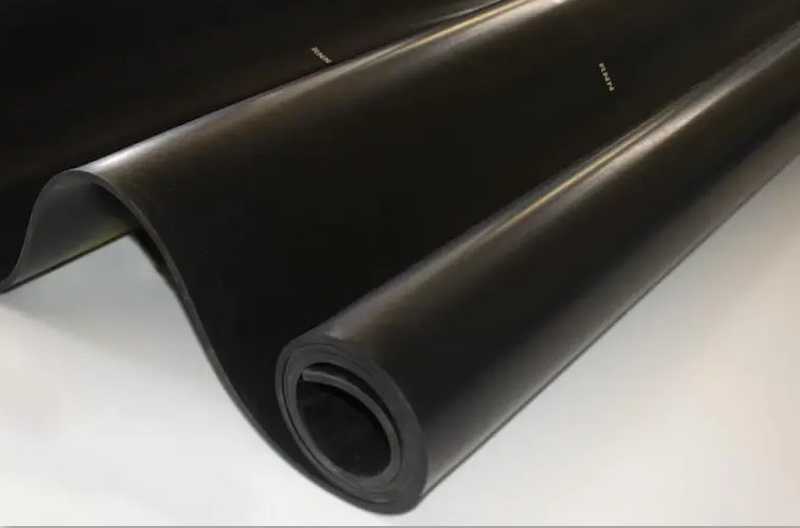

Diaphragm Rubber Sheeting

  • High Grade NBR
  • Nylon crenet
  • Good resistance to oils & fuels
  • For oil & fuel gaskets
  • Fabric finish
  • Hardness IRHD: 65

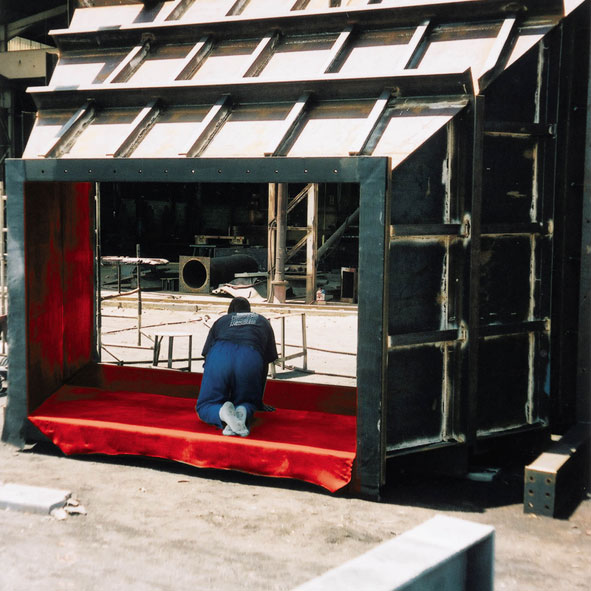

SPECIALISED ABRASION RESISTANT LINING

trucotex rubber sheeting

Trucotex® Rubber Sheeting

  • Pure NR
  • Excellent abrasion resistance
  • For chutes, pipes, cyclones, skirts & scrapers
  • Tensile strength: 24 MPA
  • Smooth finish
  • Hardness IRHD: 35

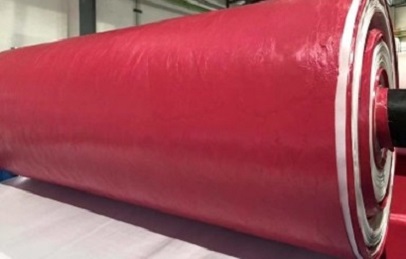

t36 premium latex rubber sheeting

T36 Premium Latex Rubber Sheeting

  • Abrasion-resistant for fine material in wet abrasion
  • Used in chutes, pipes, cyclones, skirts, scrapers
  • Hardness +- 3o IRHD: 36
  • Tensile Strength MPA: 23
  • Elongation @ break %: 810
  • Temp Range: -40° to 70° C
trucoline rubber sheeting

Trucoline® Rubber Sheeting

  • High NR content
  • Good abrasion resistance
  • For chutes, pipes, cyclones, skirts & scrapers
  • Tensile strength: 15 MPa
  • Smooth finish
  • Hardness IRHD: 40

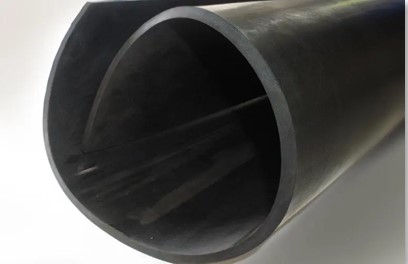

Trucotuff® Rubber Sheeting

  • Silica reinforced NR / SBR blend
  • For heavy-duty applications, e.g. screen decks, chutes & transfer points
  • Excellent resistance to cutting/slashing by dry, sharp-edged particles
  • Smooth finish
  • Hardness IRHD: 70

Rubber Sheeting

Made from natural and synthetic rubber, this range of rubber sheeting is ideal for applications such as chutes, buffers, gaskets and scrapers. (See our conveyor belting accessories page for more applications.)

Specialised rubber sheeting
Characterised by a smooth finish and strong performance in harsh environments, this range of rubber products is ideal for chutes, cyclones and pipes. (See our product specifications page for more applications.)

Abrasion resistant rubber sheeting
Products in this sheeting range are manufactured from specialised materials, specifically for use in high temperature, acidic, or oil and fuel environments. (See our specialised materials page for more applications.)

Available Sheeting and Lining Material:

  • Rubber Sheeting
  • Specialised Rubber Sheeting
  • Abrasion Resistant Rubber Sheeting

(Click on the links below for rubber specifications)
Chemical resistant chart of various polymers
Rubber compound characteristics

*Now available in fabric, plate, or press finish. All rubber sheeting can be cut to customer specifications

Get more with Truco

Our specification guide will help you understand how we classify and distinguish our rubber sheeting range and ensure efficient ordering.
