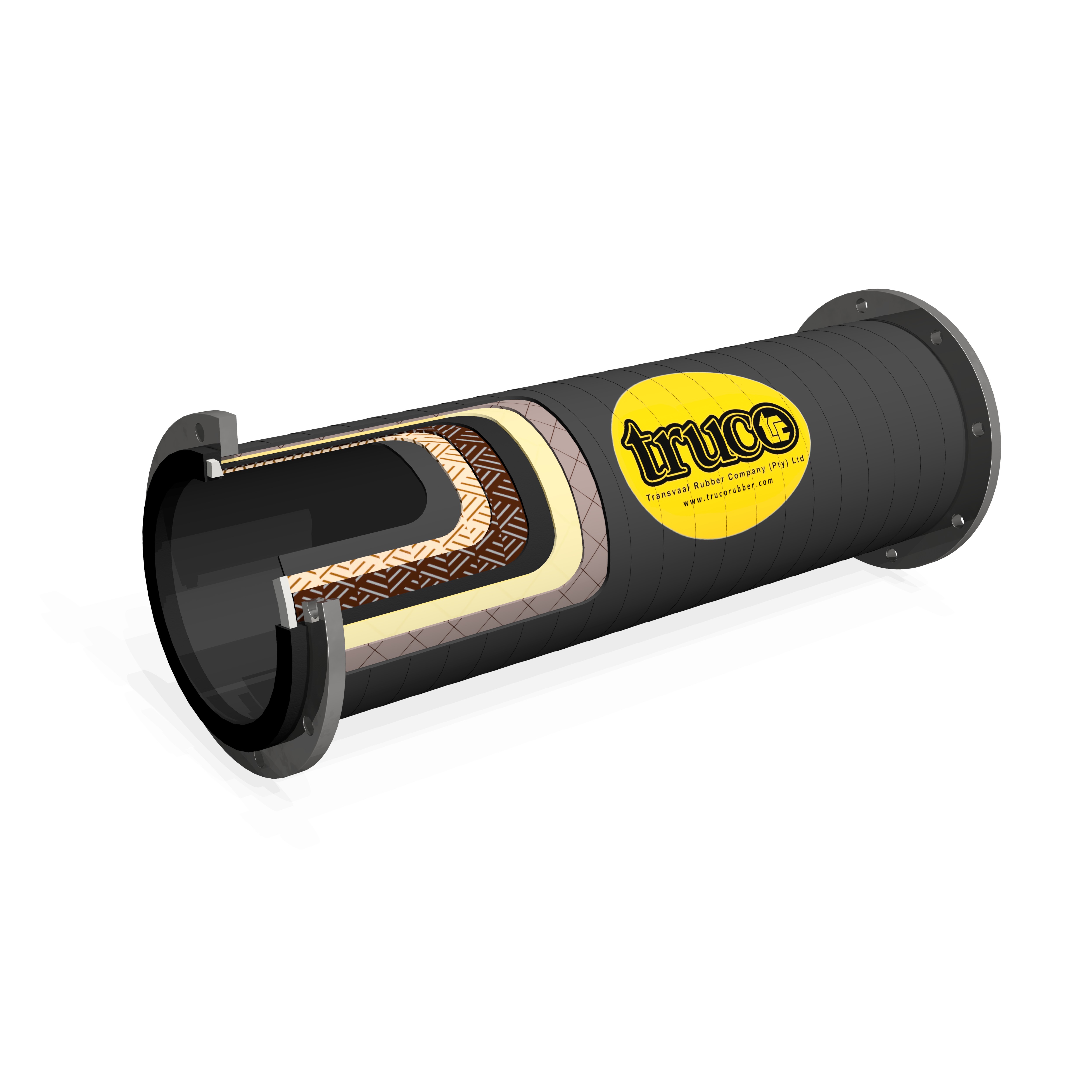

Multipurpose Softwall Delivery Hose

The multipurpose softwall hose is ideal for delivery of weak acids, alkali, water and more.

The hose has a 3:1 safety factor on the working pressure.

For sizes greater than 600 nb, contact our sales department.

LINER:
NR/SBR
REINFORCING:
Multiple cords of Polyester cords
COVER:
NR/SBR
RECOMMENDED TEMPERATURE RANGE:
-20°C to 80°C
STANDARD LENGTH:
Maximum 20 meter lengths
END FITTINGS:
Available with plain ends or cuffed, fixed or floating flanges built-in, D-ring or Double laminated flanges

Our Large bore hose range also includes:

Part	Nominal	Size Actual		Hose	Working	Minimum	Hose
number	bore	inch	mm	OD	pressure	bend radius	mass kg/m
7207 080	80	3	76.2	93	1 000 kPa	800	3.5
7207 100	100	4	101.6	119	1 000 kPa	1 067	4.4
7207 114	114	4½	114	131	1 000 kPa	1 197	4.9
7207 125	125	5	127	144	1 000 kPa	1 334	5.4
7207 140	140	5½	140	157	1 000 kPa	1 470	5.9
7207 150	150	6	152.4	169	1 000 kPa	1 600	6.5
7207 165	165	6½	165	182	1 000 kPa	1 733	6.9
7207 178	180	7	178	195	1 000 kPa	1 869	7.6
7207 200	200	8	203.2	220	1 000 kPa	2 134	8.5
7207 230	220	8½	220	238	1 000 kPa	2 310	9.7
7207 254	250	10	254	271	1 000 kPa	2 667	10.6
7207 305	300	12	304.8	322	1 000 kPa	3 200	13.1
7207 355	350	14	355.6	372	1 000 kPa	3 734	14.4
7207 375	380	15	380	397	1 000 kPa	3 990	15.7
7207 405	400	16	406.4	422	1 000 kPa	4 267	16.3
7207 457	450	18	457.2	479	1 000 kPa	4 801	24.1

S Size: The length and inside diameter?

T Temperature: Temperature of the medium transported?

A Application: What is the purpose of the hose?

M Material: What product will be conveyed through the hose?

P Pressure: The working pressure and the required safety margin?

E Ends: Are couplings required, and if so a detailed specification?

D Delivery: When is it needed?
